P-9014

Item Number: 4000014823

Power Supply 220/110V AC - 24V DC

  • 75W
  • AC power supply for CIS P31xx systems

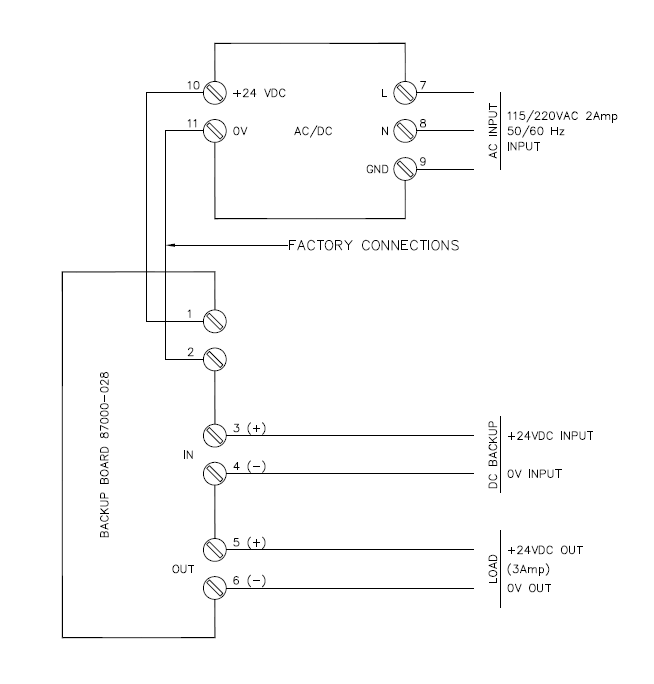

  • Automatic fallback to 24VDC Backup power
Marine 40x40 ico Onboard communication

Power suppy for all CIS P31XX models





Electrical
Primary Input 93-132 / 187-264V AC
Secondary Input 21 - 32 VDC
Power output 24 DC / 3A
Mechanical

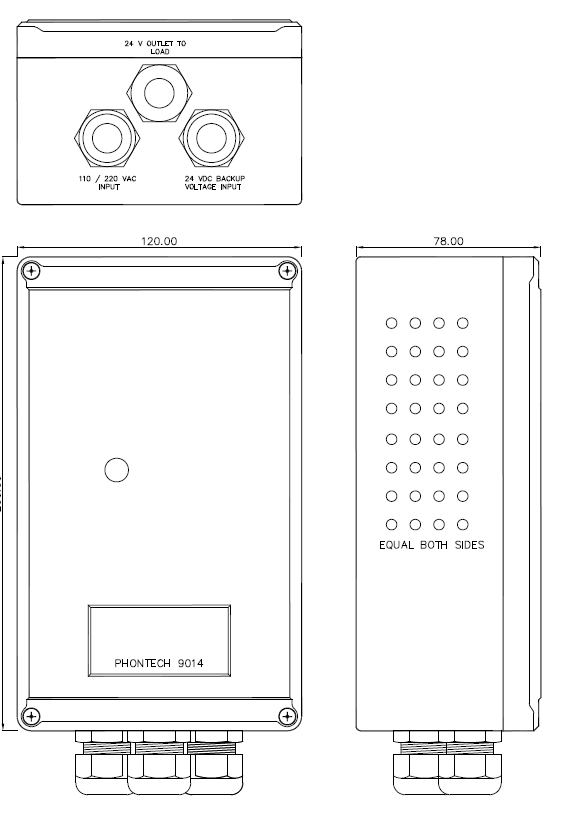

Dimensions ((WxHxD) 120 x 200 x 78 mm
Weight 1.2 kg
Material ABS
Colour RAL 7035 - Grey

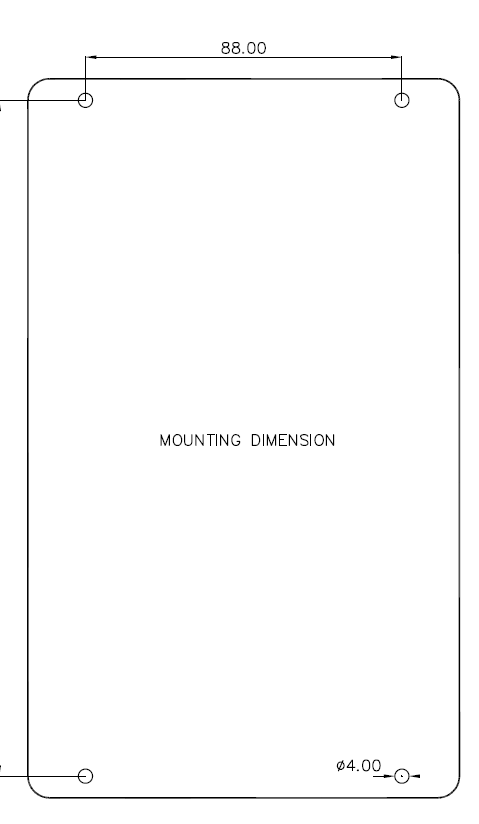

Mounting 4 x 4mm bolts
Cable Entry Bottom - 4x PG 13.5
Protection IP-20



Date Name Category Size Document
MD-SDoC-4000014823-IHM-8003-63565-75826.xlsx Declaration 53.52 KB Login to download
4000014823 P-9014 CAD Drawing.zip CAD 2D 271.64 KB Login to download
CIS 31xx DoC 19.03.2025_1.pdf Declaration 631 KB Download
