UPS-RTPRO-1K

Item Number: 1016711

Online UPS, 1kVA, 1000W/2.4min, 230V, w/rails

  • Online double-conversion UPS with unity power factor (kVA = kW)
  • Up to 93.5% efficiency (AC-AC) and 99% in ECO mode for lower energy costs
  • Extended battery lifespan with wide 120–280V input range and smart 3-stage charging
  • Programmable outlet groups optimize battery runtime for critical equipment
  • Convertible rack and tower configuration with rotatable LCD screen
  • Scalable runtime with optional external battery packs
  • Remote shutdown/restart (REPO/ROO) for enhanced safety
  • Easy monitoring and control via RS-232, USB, or mini-slot connectivity



The UPS-RTPRO-1K is a high-performance online double-conversion UPS designed to deliver continuous, high-quality power protection for critical onboard systems. Its advanced topology ensures a stable and clean output, completely independent of fluctuations in vessel or platform power supply.

Engineered for demanding maritime and offshore environments, it is ideal for applications such as PAGA controllers, intercom systems, IP telephony, navigation equipment, monitoring systems, and critical automation. With industry-leading AC-AC efficiency, unity power factor, and a compact 2U design, it provides maximum power availability while optimizing energy usage.

The UPS offers superior flexibility through integrated battery management, support for extended battery modules, and versatile communication ports, enabling reliable runtime and safe shutdown capabilities. Built to withstand challenging marine and energy conditions, it ensures a resilient power foundation for uninterrupted operation and long-term system reliability.




General
Sn 1000 VA
Pn 1000 W
Architecture Online double-conversion
Input Nominal Voltage 200/208/220/230/240 VAC, 1P2W+PE
Input Voltage Range 175-280 VAC (100% load); 120-175 VAC (with derating to 70-100% load)
Input Frequency 40-70 Hz
Input Power Factor 0.99 (100% load)
Input Connection IEC C14
Output Nominal Voltage 200/208/220/230/240 VAC, 1P2W+PE
Output Voltage Regulation ±3% (linear load)
Output Frequency 50/60 ± 0.05 Hz
Total Harmonic Distortion (THDv) ≤ 2% (linear load)
Output Power Factor 1
Output connection IEC C13 ×2, Programmable IEC C13 ×2 ×2 groups
Efficiency Up to 93.5% Online Mode / Up to 99% ECO Mode
Overload Capability < 105% continuous; 105-125%: 1 min ± 5 secs; 126-150%: 15 ± 3 secs; 151-155%: 0.1 secs
Battery Type VRLA
Battery Nominal Voltage 24 VDC
Battery Quantity 2 pcs
Dimensions W x D x H 440 x 335 x 88 mm
Weight 11.7 kg
IP Rating IP20

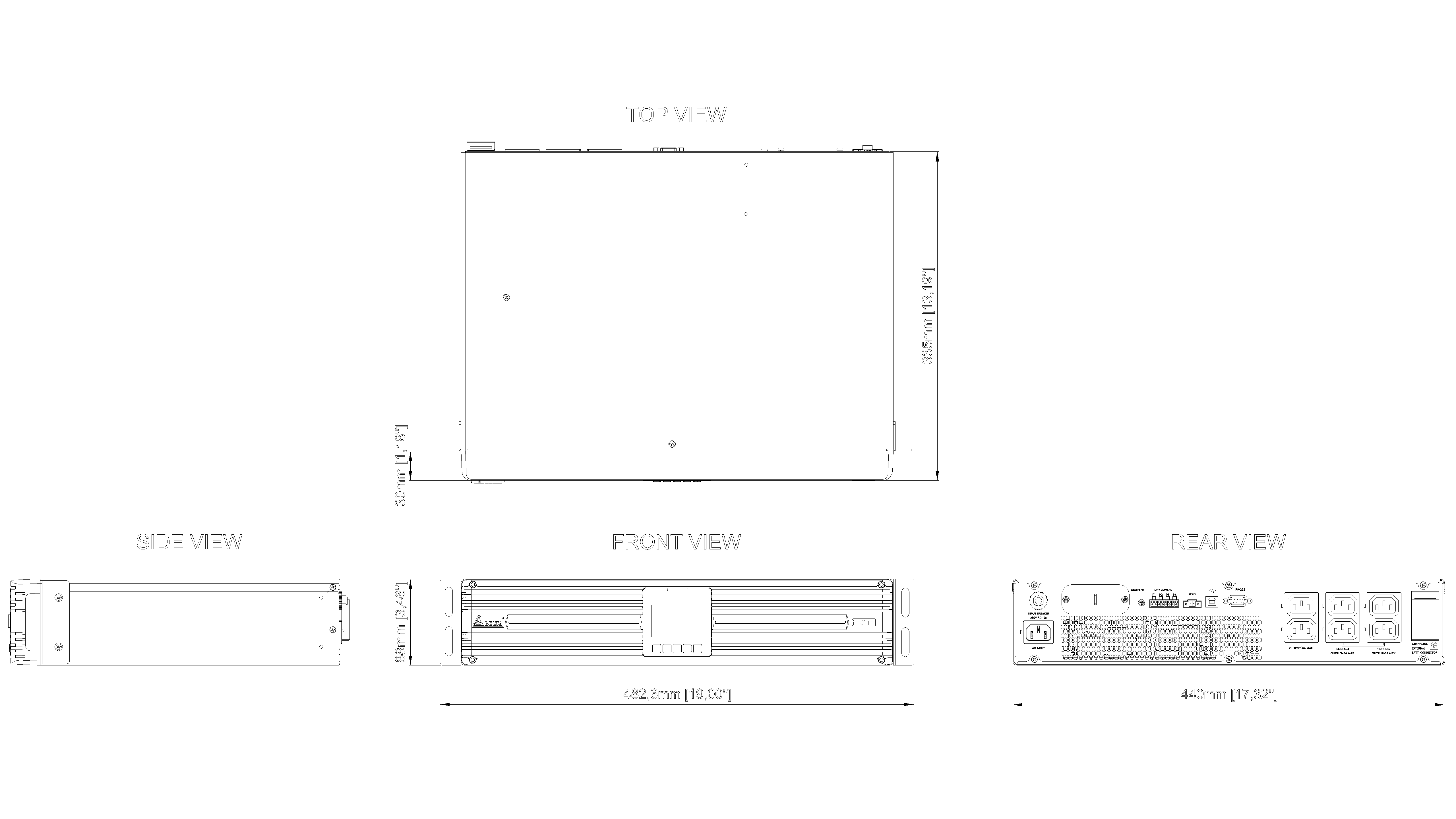

1016711-UPS-RTPRO-1K_Dimensional_Drawing
Date Name Category Size Document
User-Manual_UPS_RT-Pro-1-3-kVA Manual 5.78 MB Download
Quick-Guide_UPS_RT-Pro-1-3-kVA-EBP Installation file 1.33 MB Download
Leaflet_UPS_RT-Pro-1-3-kVA Datasheet 554.9 KB Download
1016711-UPS-RTPRO-1K CAD 2D 1.1 MB Login to download
