Horn loudspeaker 30W 100V with fuse

VLS-30T/F-MED

Item Number: 2131000153

Horn Speaker 100V, 30W

  • MED approved
  • Robust and powerful horn speaker
  • Suitable for outdoor installation in harsh environments
  • Prepared for loop in/ loop out connection
  • 1x M20 gland and 1x blind plug included
MED EU Certification icon MED Certification
MER Certification logo-2 MER Certification
IP66 IP66

The VLS-30TF is a robust and versatile 30W horn speaker designed for challenging environments. It's MED approved, making it ideal for use on ships, particularly in noisy areas like engine rooms or outdoor spaces. This speaker is also well-suited for various industrial settings where clear, loud sound is crucial.

Built to withstand harsh conditions, the VLS-30TF offers reliable performance in tough environments. It comes equipped with a 100V line transformer and fuse, ensuring safety and compatibility with standard PA systems. The speaker supports loop in/loop out connections, simplifying the installation of multiple units.

Users can select from four different power tappings: 5W, 10W, 15W, 20W, 25W, and 30W. This flexibility allows the speaker to be optimized for different spaces and noise levels. For easy installation, the package includes one M20 gland and one blind plug.



GENERAL
Dimension (mm) 315W x 170H x 350D
Material, finish ABS, grey
Mounting Bracket, stainless steel grade 304
Connection 1x M20 gland and 1x blind plug included
Weight 2,49 kg
Rated power 30W
Max Power Rating 45W
Power tappings 30W - 25W - 20W - 15W - 10W - 5W
Frequency response 240 HZ - 10 KHz
Sensitivity 108dB/1W/1m - 123dB/30W/1 m
Maximum SPL 123dB
IP rating IP66
Temperature range -40 ◦C - +55 ◦C
Impedance 330/400/500/670/1k/2k
Environmental Condition Exposed
Compass Safe Distance 185 cm
OTHER
2131000207 Additional M20 cable gland for VLS-15(TF)/VLS-30(TF). Not included and not mounted.

Installation and operation:

  1. 1. Mount cable through cable gland and connect cable leads to 100V line in + - terminals
  2. 2. Select required loudspeaker tapping
  3. 3. Fasten the back box onto front of loudspeaker
  4. 4. Fasten cable gland(s) and ensure the cable leads are not placing strain on the terminals
  5. 5. Place loudspeaker and mount using mounting holes on bracket
  6. 6. Once installed the loudspeaker can be used



Maintenance:

  1. 1. No scheduled maintenance is required
  2. 2. For any kind of maintenance secure loudspeaker is not energized
  3. 3. Loudspeaker is equipped with fuse. If fuse broken remove back box from front loudspeaker to access

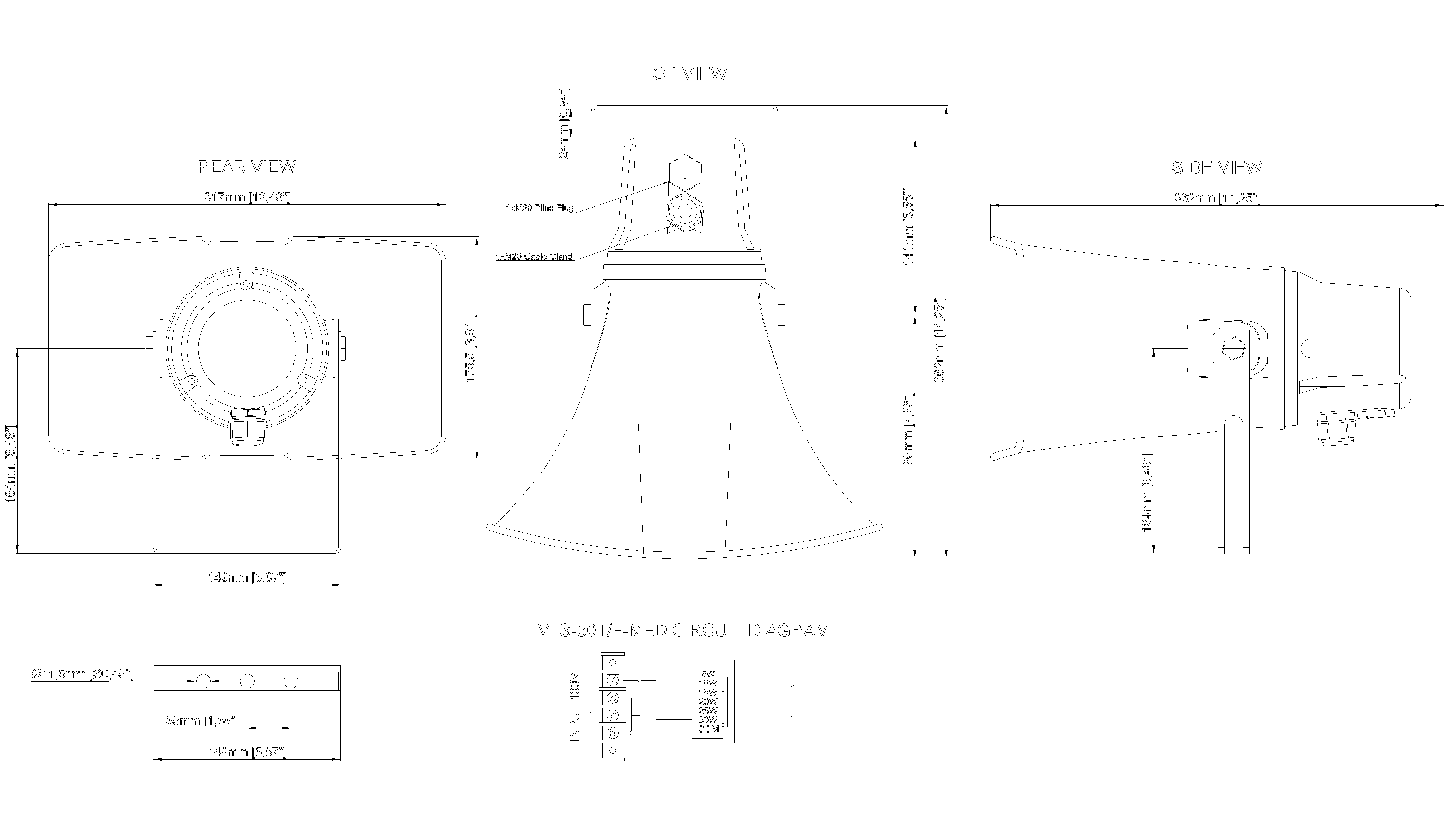

VLS-30TF dimensional drawing
