CL-200T

Item Number: 2131000138

Ceiling Loudspeaker Steel Firedome, new back box

  • Made for marine environment
  • Good audio quality
  • Steel back box to reduce fire risk and spread
  • Spring fasteners and screw holes for vibrating environments
  • Spring fasteners only for non-vibrating environments
  • Adjustable power tapping to accommodate separate room sizes
  • Back box glands increase stability of wire connectivity
  • Supports loop wiring with 2 x 20 mm back box glands
  • Includes thermal fuse, transformer and supports 100V lines
  • Ceramic terminals

The Vingtor-Stentofon flush mounted ceiling speaker CL-200T is made for the most demanding environments – withstanding dusty, salty and vibrating environments. The speaker is well suited for marine usage – by use of zinc-treated steel grille with painted front and fully painted back box.

The entire enclosure is made from non-combustible materials. The CL-200T is therefore suited for ceilings where B-0 fire rating is specified.

The speaker is easy to install due to the one-hand adjustable power tapping button. The back box glands enhance the speaker and provide extra coverage against dust, humidity and water. Using both glands facilitates loop-wiring and reduces the need for costly junction boxes

Dimensions (Diameter x depth) 199x101mm
Weight 1,45kg
Mounting Flush mounted – ceiling or wall. Clamps and/or 3 screws (4 mm holes)
Operating temperature range -20 - 90 °C
Rated/ max power 6W
Power tappings 6 – 4 – 2 – 1 W
SPL 1W / 1m 92 dB
Frequency range 150 – 20000 Hz
Color RAL 9010
Glands 2xM20 (8.5-14mm)
IP rating (from front side only) IP 44 (when installed in a flat horizontal roof)
Environmental Condition Protected

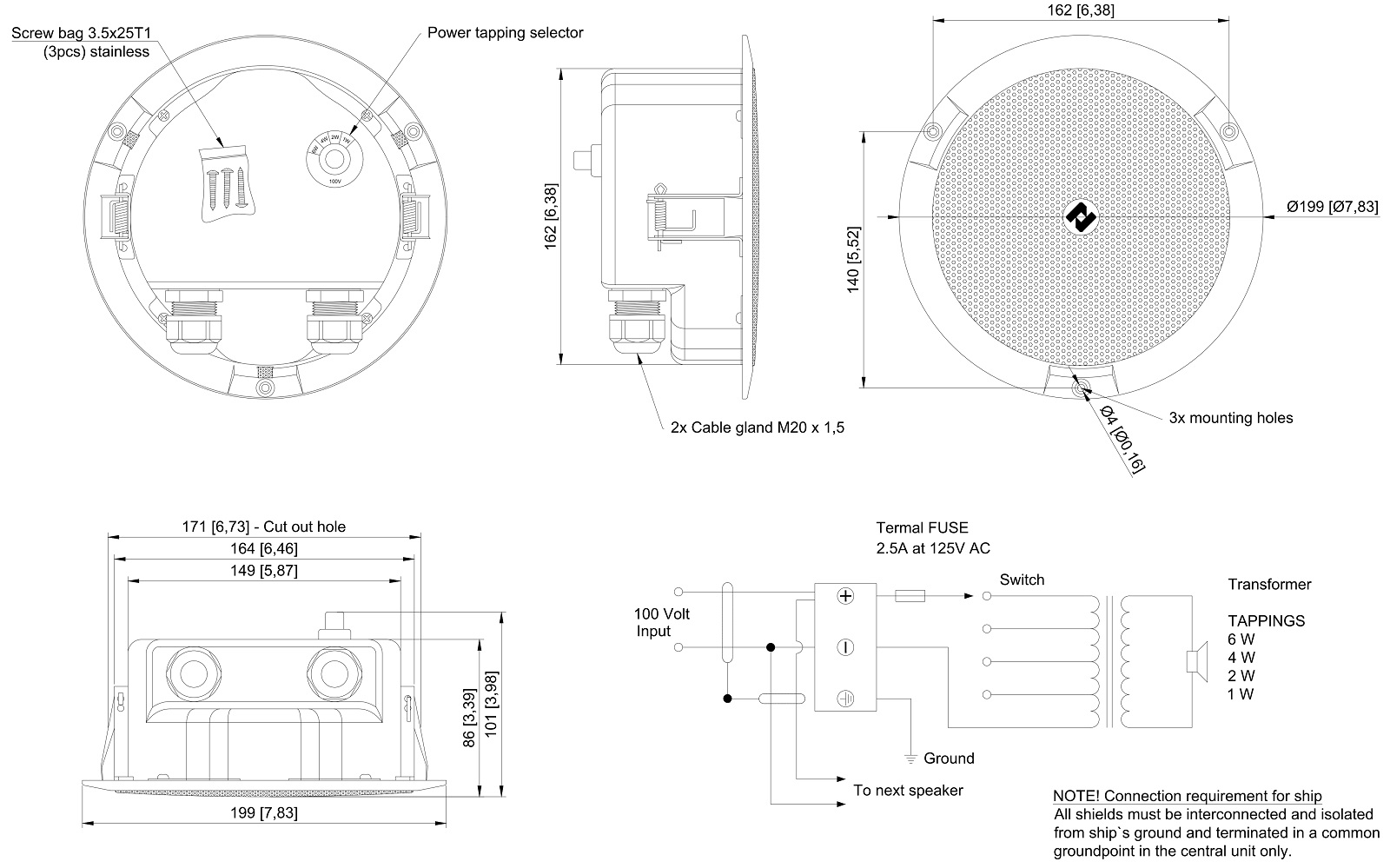

CL-200T_DimDraw

CLMQ-200T

CLMQ-200T

6'' Ceiling speaker, high sound quality, 100V, 6W

CL-135T

CL-135T

5" Miniature ceiling speaker, 100V, 6W

CL-200T-AG Ceiling Loudspeaker Steel Firedome picture

CL-200T-AG

Ceiling Loudspeaker with Steel Firedome for Humid Rooms

Date Name Category Size Document
9.05.2024 A100K11803 - CL-200T - Dimensional Drawing CAD 2D 678.28 KB Login to download
16.05.2023 MD-SDoC-2131000138-IHM-8003-41819-66650 Declaration 72.18 KB Login to download
24.08.2022 ACM Polski Rejestr Statkow No TE-2040-880575-14 Certificate 112.09 KB Download
