CL-200T-AG Ceiling Loudspeaker Steel Firedome picture

CL-200T-AG

Item Number: 2131000142

Ceiling Loudspeaker with Steel Firedome for Humid Rooms

The flush mounted ceiling speaker CL-200T-AG is made for humid rooms where fire integrity is also required. The ceiling speaker has a tropicalized speaker cone to withstand moisture and the entire enclosure is made from non-combustible materials. The CL-200T-AG is therefore suited for ceilings where B-0 fire rating is specified.

  • Made for marine environment
  • Good audio quality
  • Steel back box to reduce spread of fire
  • Selector on the back to adjust power tapping to accommodate separate room sizes
  • Cable glands increase stability of wire connectivity
  • Supports loop wiring with 2 x M20 cable glands
  • Includes thermal fuse and ceramic terminals
  • Aluminum grille and fully painted chassis provides good corrosion properties
Dimensions (Diameter x depth) 199x101mm
Weight 1,45kg
Mounting Flush mounted – ceiling or wall. Clamps and 3 screws (4 mm holes)
Operating temperature range -20 - 90 °C
Rated/ max power 6W
Power tappings 6 – 4 – 2 – 1 W
SPL 1W / 1m 92 dB
Frequency range 150 – 20000 Hz
Color RAL 9010
Glands 2xM20 (8.5-14mm)
IP rating (from front side only) IP 55 (from front side only after installation in a flat horizontal roof in accordance with mounting instructions and using all three fastening screws)

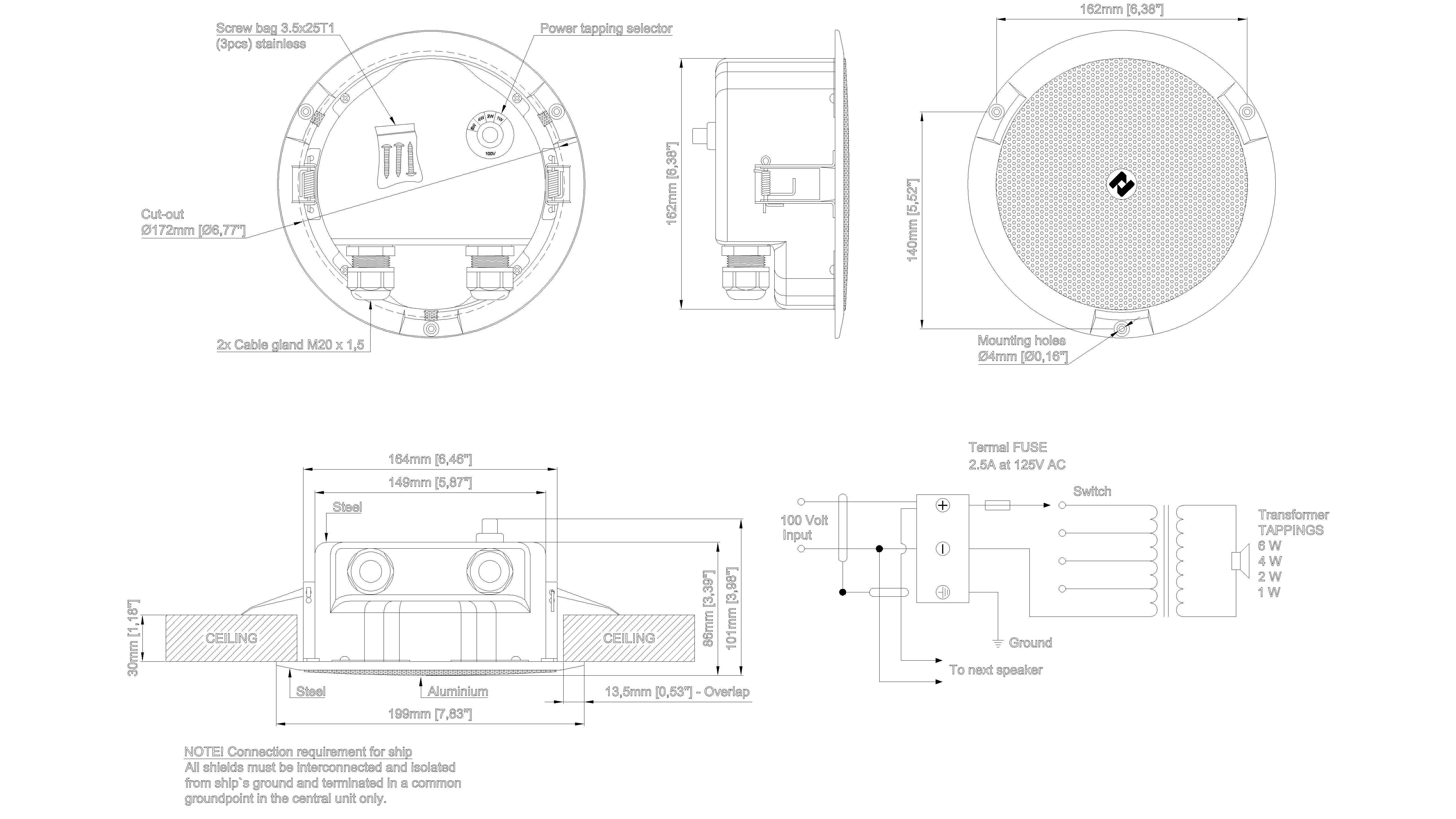

A100K11876-2131000142 CL-200T-AG_DimDraw

CL-200T-AG Ceiling Loudspeaker Steel Firedome picture

CL-200T

Ceiling Loudspeaker Steel Firedome, new back box

CL-135T

CL-135T

5" Miniature ceiling speaker, 100V, 6W

CLMQ-200T

CLMQ-200T

6'' Ceiling speaker, high sound quality, 100V, 6W

Date Name Category Size Document
9.05.2024 A100K11876 - CL-200T-AG - Dimensional Drawing CAD 2D 677.99 KB Login to download
25.03.2024 MD-SDoC-2131000142-IHM-8003-56005-161573 Declaration 71.87 KB Login to download
24.08.2022 ACM Polski Rejestr Statkow No TE-2040-880575-14 Certificate 112.09 KB Download
7.04.2020 Declaration of Conformity SPA-V2 Declaration 72.73 KB Download
