P-9000 Relay Unit

Item Number: 4000017569

The P-9000 is a relay unit for activation of an external signal device and is wall mounted.

Mechanical

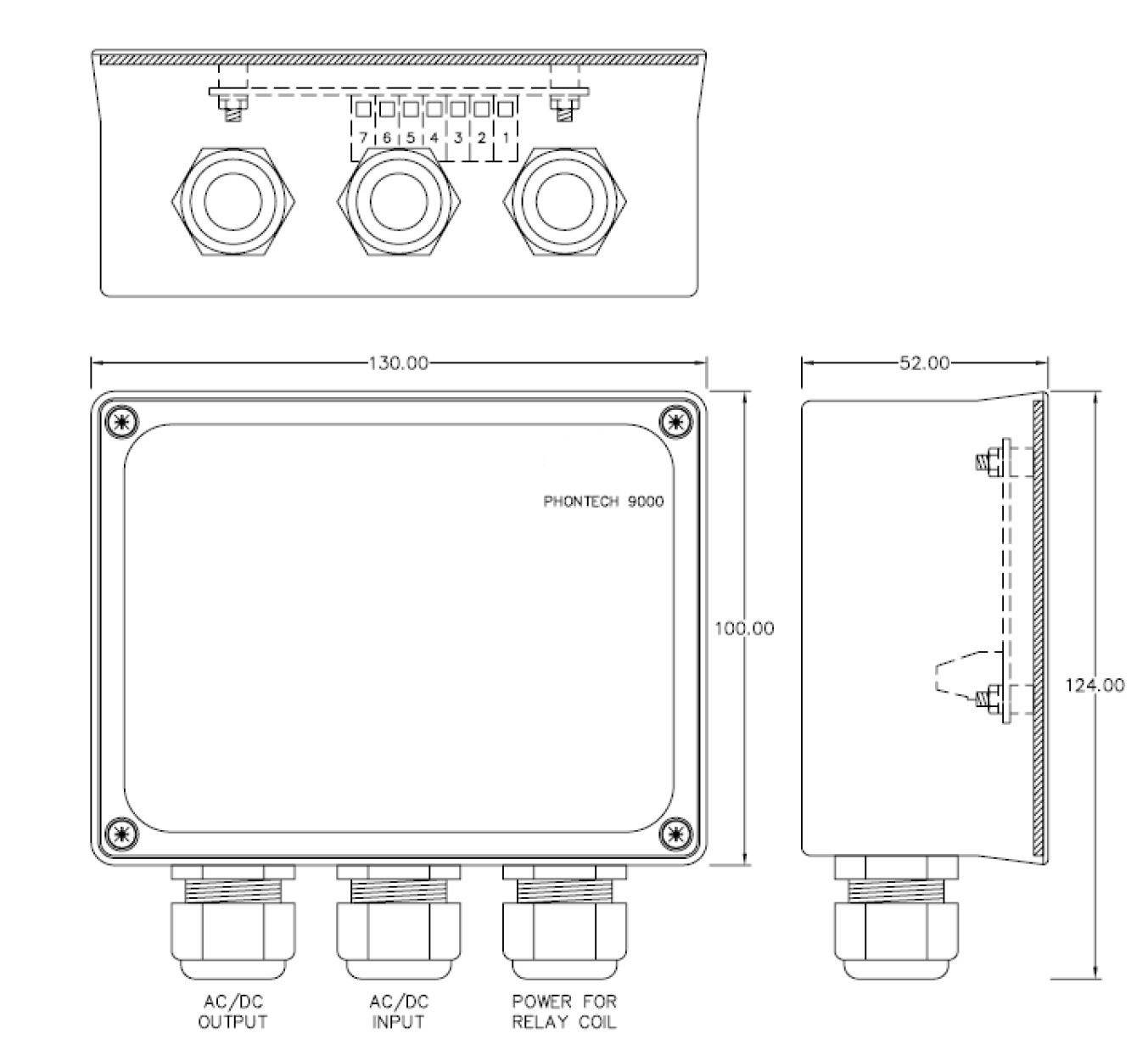

Dimensions (WxHxD) 130x124x52 mm
Weight 0.3 kg
Color RAL 9005/9006
Material PC / ABS blend

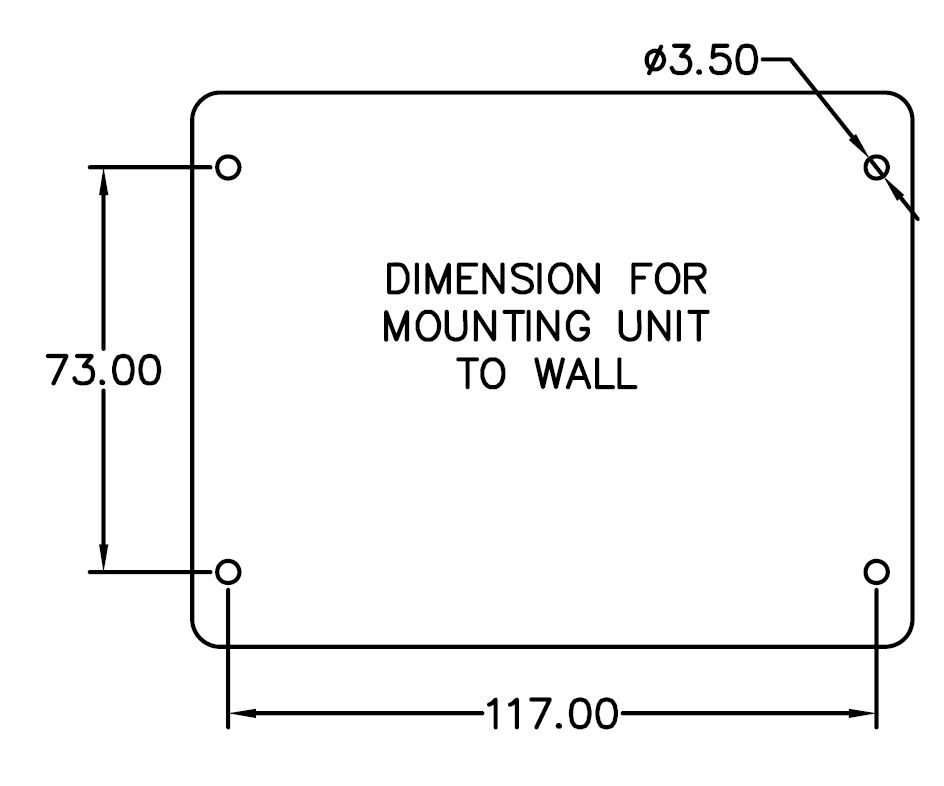

Mounting Wall
Fixing 4 x M3 bolts
Access Front
Cable Entry Bottom/Top
Gland Type 3 x M20
Electrical

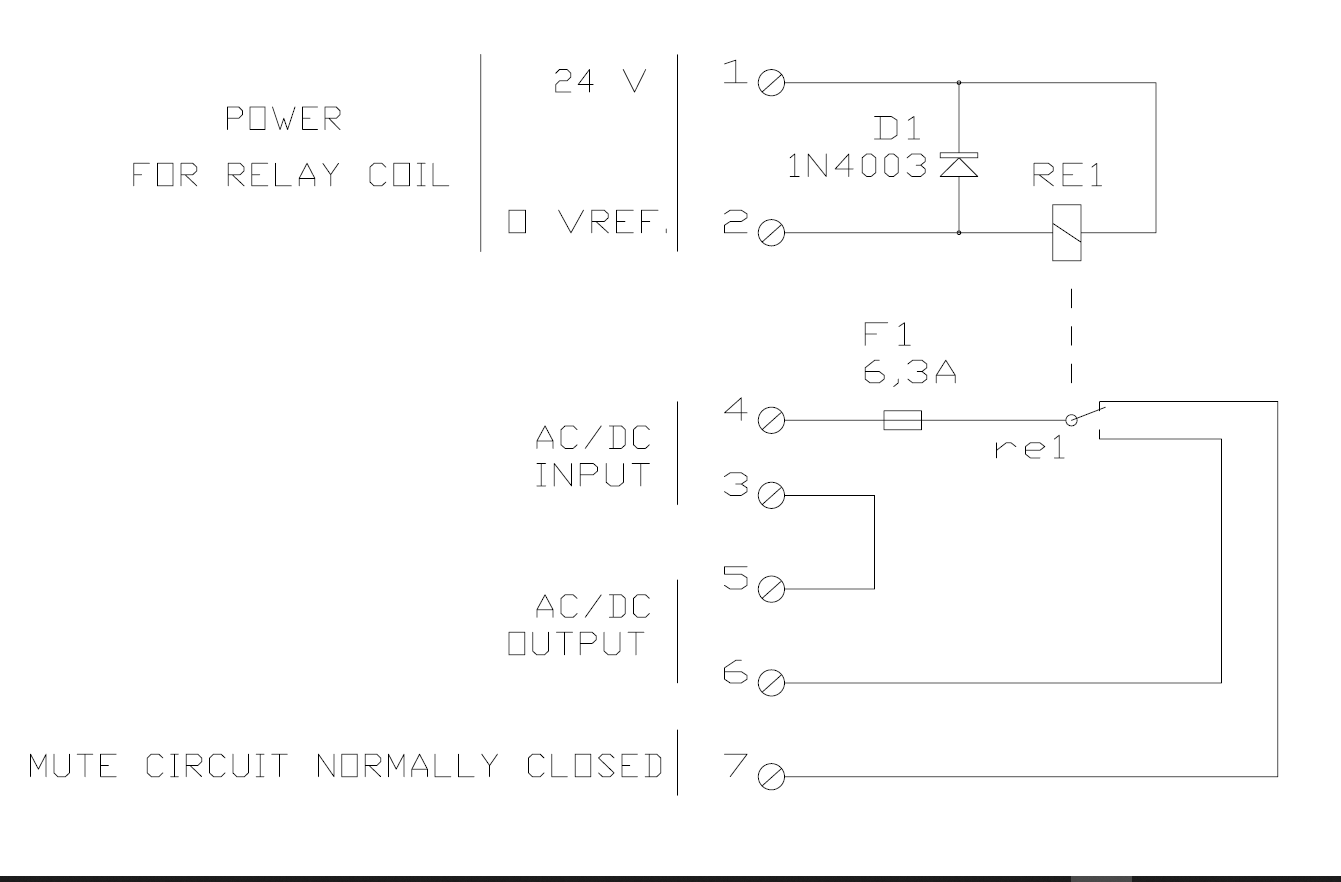

Relay Coil (load) 24VDC / 1200 Ω
Switching Capacity 6.3A / 250VAC
Termination Screw terminals ≤ 2.5 mm2
Compass Safe Distance > 5 m
Environmental
Temperature -25°C to +55°C (Storage: -30°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-56
